    Emergency shutdown valves

    Liên hệ
    SERIES X
    SERIES X
    Neles
    Còn hàng

    Reliable intelligent emergency shutdown (ESD) valves and actuators with Neles™ ValvGuard™ intelligent valve controllers improve your plant safety cost efficiently. In Neles we have combined our know-how of valves, actuators, safety standards (IEC61508/61511), applications, system operability and partial stroke test devices with intelligent prediction tools. Diagnostic information is presented understandably to enable planned maintenance of potentially failing valve assemblies before they have a chance to impact the process or safety.

    Đặt hàng
    So sánh
    Yêu thích
    • Chia sẻ qua viber bài: Emergency shutdown valves
    • Chia sẻ qua reddit bài:Emergency shutdown valves

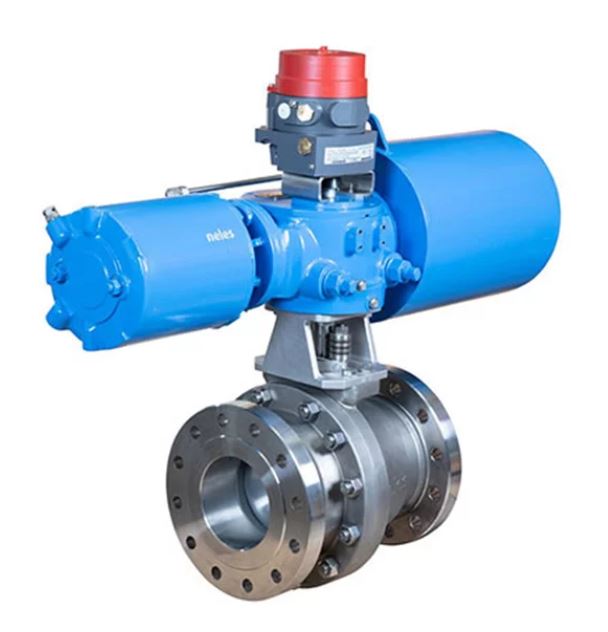

    Neles™ modular seat supported ball valve, series X

    Improving the customer process reliability, safety and efficiency

    Neles series X modular ball valve, incorporates robust stem to ball connection in seat supported models. Application based seat selection assures valves are capable of delivering long lasting tightness. Valve series meets modern industry requirements concerning safety and emissions.

    Features

    • 2-piece off-center split body, solid circular body joint gaskets
    • Anti-blowout stem
    • Robust stem to ball connection both in trunnion and seat supported ball models
    • Application based seat selection options, metal-to-metal and soft seats
    • Neles Q-trim™ technology for control applications, anti-cavitation and noise attenuation
    • Low emissions according to ISO 15848
    • Fire safe certified according to API 607
    • SIL 3 certified
    • High Cv, including noise attenuation trims, which are designed self-flushing
    • High, long lasting tightness
    • Part modularity, reduced parts inventory for servicing
    • Wide material selection for application specific needs

    Applications

    • Oil and gas production
    • Chemical and petrochemical plants
    • Power plants
    • Liquids, gas and steam
    • High temperature service
    • Cryogenic service
    • Hydrocarbons
    • Catalyst handling
    • Solids handling
    • Polymers
    • Control and tight shut-off applications
    • High cycling
    • Emergeny applications ESD/ESV
    • LNG
    • Natural gas

    Specifications


    Construction
    Flanged, seat supported, full and reduced bore ball valve
    Size range
    DN 25 – 200 / NPS 1” – 8”
    Face to face
    ASME B16.10
    Design standard
    ASME B16.34, API 608
    Pressure ratings
    EN PN 10 - 100, ASME 150 - 600
    Temperature range
    -200 °C … +600 °C / -320°F … +1110 °F
