    Jamesbury™ Valv-Powr™ VPVL series pneumatic actuator

    Liên hệ
    VPVL Series
    VPVL Series
    Jamesbury
    Còn hàng

    Jamesbury Valv-Powr VPVL series pneumatic actuator for fast, efficient, and economical operation of rotary valves.

    • Chia sẻ qua viber bài: Jamesbury™ Valv-Powr™ VPVL series pneumatic actuator
    • Chia sẻ qua reddit bài:Jamesbury™ Valv-Powr™ VPVL series pneumatic actuator

    Jamesbury™

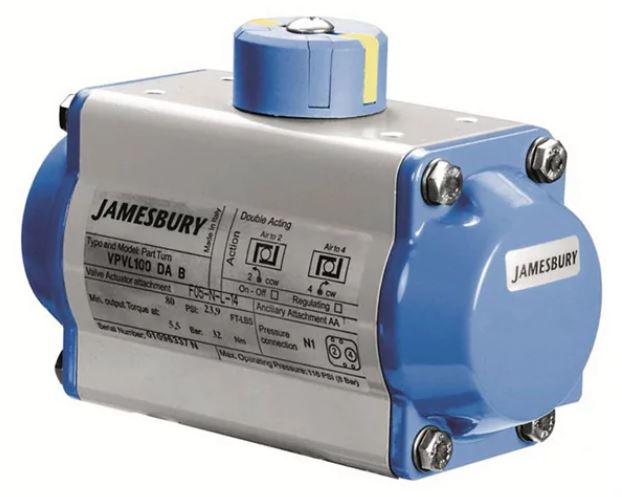

    Valv-Powr™ VPVL series pneumatic actuator

    Compact rack and pinion piston pneumatic actuator

    Jamesbury Valv-Powr VPVL series pneumatic actuator for fast, efficient, and economical operation of rotary valves.

    Features

    • Modular design utilizing same body and end caps for both double-acting and spring-return versions
    • Compact and light weight
    • High cycle life with low friction bearings on all rotating and sliding surfaces
    • ISO 5211 mounting pattern
    • ATEX certified
    • Machined gear teeth provide longest life and smoother operation
    • Safety contained springs prevent hazards of inadvertent ejection during maintenance
    • Corrosion resistant with PTFE coated body, polyester coated end caps, and stainless steel fasteners
    • Adjustable stops for both open and closed positions

    Specifications


    Torque output
    3.2 to 7187 Nm / 2.5 to 5300 lb-ft
    Operating pressure
    2 to 8 bar / 30 to 116 psi
    Standard temperature range
    -40 °C to +80 °C / -40 °F to +176 °F
    Options
    Extended temperature ranges available from -51 °C (-60 °F) up to +15 0°C (+302 °F). Many options available including mechanical lock-out, 100% adjustable stop, and various protection coatings.
