Product informationThe 9660 backflow preventer is a compact safety device designed to protect drinking water systems in accordance with DIN EN 1717 up to fluid category 4.As a mini backflow preventer in DN10, it is particularly suitable for applications with limited installation space, such as heating system top-ups, dosing systems or commercial dishwashers.The operating principle is based on a three-zone pressure system with an inlet non-return valve, a drain valve and an outlet non-return valve (p1 > p2 > p3). This ensures reliable separation between drinking water and non-potable water.Thanks to lead-free materials, low pressure drop and a compact design, the 9660 meets the highest standards of hygiene, efficiency and integration.connection types Male threadMore information please go link: Backflow preventer 9660 DN10 – compact, lead-free, efficient | GOETZE

Product informationThese diaphragm and piston pressure reducing valves made of stainless steel and with female threaded connections for pneumatic and hydraulic applications are distinguished particularly by high flow rates and low pressure losses even in situations of high performance demands. Their extremely precise control characteristics, the inlet pressure of up to 60 bar and the wide outlet pressure range make these pressure reducing valves the optimal solution for almost all technically demanding applications.connection types Internal pipe threadMore information please go link: 484

Product informationAll characteristics and technical features of the stainless steel versions also apply to the series 684 made of corrosion-resistant gunmetal.The fully relieved valves which therefore even out inlet pressure variations are available with and without secondary venting and each in a diaphragm or a piston version.Pressure adjustment is carried out without tools via the ergonomically formed hand-wheel. The extremely small pressure loss in the pressure adjusting area leads to these high-performance pressure reducing valves having almost no competition.connection typesInternal pipe threadMore information please go link: 684

Product informationThis pressure reducing valve is an alternative to the larger versions, in cases where only small flow volumes are required or the medium in question is compressed air. With an outlet pressure of max. 50 bar the pressure reducing valve is used, for example, to control the starter air on ships. It goes without saying, that it holds all the necessary marine approvals of the various bodies such as Germanischer Lloyd etc.This valve is used in many industrial applications particularly for compressed air and neutral gases.connection types Internal pipe threadMore information please go link: 683

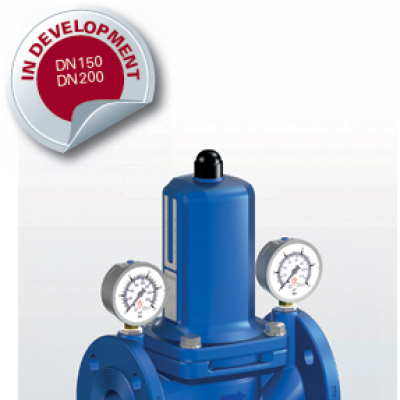

Product informationThe 382 flange pressure reducer from GOETZE is the ideal solution for efficient pressure regulation in a wide range of water applications. Designed for use in apartment blocks, office complexes, hospitals and hotels, this flange pressure reducer ensures an optimum water supply wherever large quantities of water are required. Thanks to its outstanding performance and minimal pressure drop, the 382 flanged pressure reducing valve can also be used in municipal water supply and industrial applications.GOETZE attaches great importance to quality and durability in the manufacture of the 382 flange pressure reducer. The body made of high-quality spheroidal graphite cast iron ensures maximum resistance to mechanical stresses. The innovative polyamide coating, applied by dipping, offers unrivalled corrosion resistance - even against seawater and abrasive water, making the flange pressure reducer an excellent choice for demanding environments.The V4A stainless steel components in the valve insert emphasise GOETZE's quality philosophy by guaranteeing easy maintenance and a long service life. The flange pressure reducer has an adjustment scale on the bonnet that allows precise back pressure adjustment without operating pressure to simplify installation and adjustment for technicians.Discover the 382 flange pressure reducer for your water supply requirements and benefit from the proven GOETZE quality that promises efficiency, reliability and safety in every application.connection types Flange connectionMore information please go link: 482

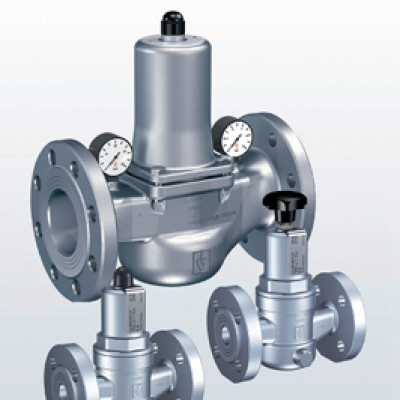

Product informationFlange connections are frequently required for valves. Just for this purpose, the 482 series is available in the nominal width range from DN15 to DN100. A high-pressure and low-pressure version are also available for sizes DN20 to DN50.On request, we can fit stainless steel pressure gauges for the various pressure ranges to the pressure reducing valves made of stainless steel.For maximum maintenance friendliness, the replaceable functional cartridge with dirt trap strainer is also available for the flange versions.connection types Flange connectionMore information please go link: 482

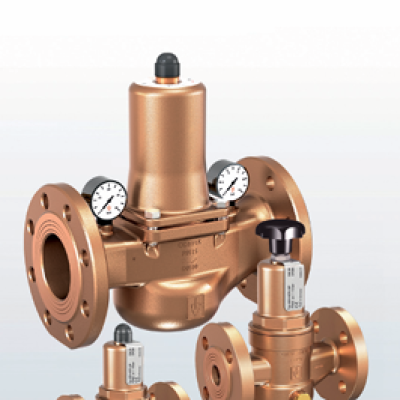

Product informationOften flange pressure reducing valves with smaller connection sizes are required. For this reason, this type is now not only available in sizes DN65 and DN100, but also in sizes DN20 to DN50, as well as in a high- and low-pressure version.The body is made completely of corrosion-proof and seawater-resistant gunmetal. All wetted parts are made either of gunmetal or corrosion-resistant stainless steel. All technical features of the stainless steel version have also been consistently incorporated into this version.connection types Flange connectionMore information please go link: 682

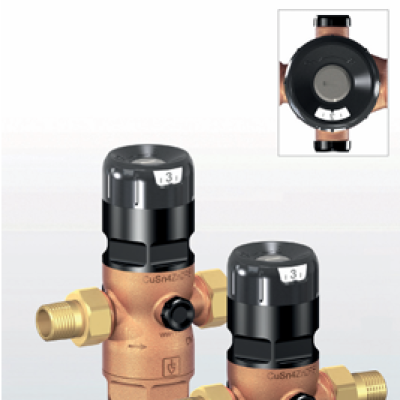

Product informationThe first Goetze fitting with functional parts made of plastic has been developed for the environmentally-aware and health-conscious user. The lead-free pressure reducing valve housing does not release any harmful substances into the potable water and is corrosion-resistant for all water qualities.At the same time, the avoidance of heavy metals protects the environment. The valve insert is made of a high-quality plastic from the medical technology sector, and offers convincing cavitation-, temperature- and media-resistance. The flow rate of the pressure reducing valve has also been rated for maximum output.connection types Male threadMore information please go link: 9000

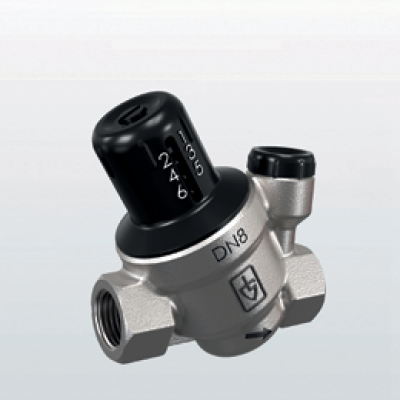

Product informationThe 9140 series expands GOETZE's portfolio with a compact mini pressure reducing valve made of stainless steel.With a nominal diameter of DN 8 and a 3/8" female thread connection, it is particularly suitable for applications with low flow rates and high corrosion resistance requirements.Thanks to its compact size, the 9140 can be reliably installed even in confined spaces or directly integrated into equipment.The integrated filter screen protects the installation from particles and impurities, while the pressureless presetting with adjustment scale enables precise regulation.Made of stainless steel, the 9140 series guarantees maximum durability and safety in drinking water applications.connection types Male threadInternal pipe threadMore information please go link: 9140
