Product informationThe Series 9160 is the smallest water pressure reducing valves in the Goetze portfolio.These mini pressure reducing valves in nominal width DN08 are used especially in applications such as coffee machines, water dispensers or soft drink dispensers with fixed water connections. The small size is particularly important here, as the pressure reducing valves are often integrated into the housing of the appliance. For water installations in flats, the mini pressure reducing valves are often used in nominal width DN15/20.The integrated filter screen protects the unit and the installation from particles and impurities. An adjustment scale in the spring cap allows pressureless presetting with a screwdriver.  The nominal widths DN15/DN20 can be installed with optionally available fitting screw connections; alternatively, directly by means of an internal thread.The housing is made of dezincification-resistant brass - also available in lead-free brass on request. Accessories include fittings and pressure gauges.connection types Male threadInternal pipe threadMore information please go link: 9160

Product informationThe pressure regulator of the series 2980 is designed for setting and controlling the vessel pressure on tanks used for the storage of cryogenic liquefied gases, such as LIN, LOX, LAr, LNG.The use of two high-quality stainless steel bellows, the lead-reduced gunmetal body material and the PTFE seat seal make the pressure regulator suitable for a wide temperature range.The pressure regulator is available in three different spring packages and can be individually adjusted up to 38 bar. The pressure regulator is characterised by temperature resistance and an excellent control quality combined with a compact design.connection types Male threadMore information please go link: 2980

Product informationThe non-return valves are used in pipelines for the storage, transport and production of liquid gases and provide protection against the unintentional backflow of gases or liquids. The check valves are used at operating temperatures from -196°C up to +120°C and are available in nominal sizes from DN10 - DN50 and in the pressure range up to 63bar. The valves can be designed with stainless steel (series 2142) or gunmetal body (series 2182). connection types Internal pipe threadSocket weldButt weldsMore information please go link: 2142

Product informationThe non-return valves are used in pipelines for the storage, transport and production of liquid gases and provide protection against the unintentional backflow of gases or liquids. The non-return valves are used at operating temperatures from -196°C up to +120°C and are available in nominal sizes from DN10 - DN50 and in the pressure range up to 63bar. The valves can be designed with stainless steel (series 2142) or gunmetal body (series 2182). connection types Internal pipe threadSoldering socketMore information please go link: 2182

Product informationVent valve for pipelines, pipeline systems, vessels and heat exchangers, in which the pressure should not fall below atmospheric pressure.connection types Internal pipe threadMale threadMore information please go link: 1945

Product informationVent valve for pipelines, pipeline systems, vessels and heat exchangers, in which the pressure should not fall below atmospheric pressure.connection types Internal pipe threadMale threadMore information please go link: 1960

Product informationVent valve for pipelines, pipeline systems, vessels and heat exchangers, in which the pressure should not fall below atmospheric pressure.connection types Internal pipe threadMale threadMore information please go link: 1965

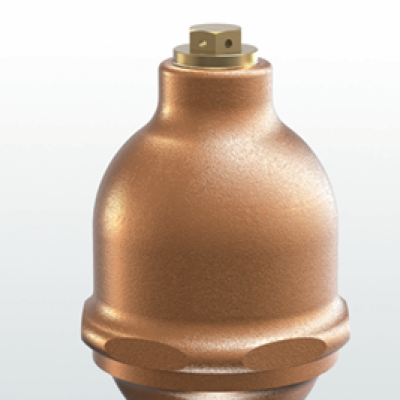

Product informationAir inlet and outlet via lateral bore holes in the seat screw.Order example for type 620 with connection 1/2": 620-15connection types Internal pipe threadMore information please go link: 620

Product informationFor the protection of pressureless tanks and piping systems to avoid vacuum during discharging or cooling-down.These vacuum valves are also called „sniffing valves". They open in case of a vacuum and release the air until the vacuum has been alleviated.connection types Male threadMore information please go link: 625
