Product information Highly corrosion-resistant overflow valve - closed, gastight version. This is suitable for all media and due to its large spring range is suitable for a wide range of applications. Therefore it is also ideally suitable, when a customer wants to stock a valve suitable for a wide range of applications and varying set pressures.This valve is particularly maintenance-friendly due to an easily replaced valve cartridge. The valve can also be easily set or adjusted during operation.connection types Internal pipe threadMale threadClamp connectionsMore information please go link: 418
Product information High flow rates at low differential pressures. Can be adjusted and set externally during operation, for liquid and gaseous media, service friendly due to replacement cartridge. This overflow valve made of high-alloyed stainless steel combines all of these advantages.According to the sealing- and diaphragm materials employed, these valves can be used for neutral and non-neutral media.connection types Flange connectionMore information please go link: 431
Product informationThe alternative to stainless steel made of corrosion-resistant gunmetal.The advantages of an external adjustment possbility during operation, high flow rates at low differential pressures, suitability for liquid and gaseous media. Easy service due to the replacement valve cartridge make this diaphragm-controlled overflow valve suitable for a wide range of applications. connection types Internal pipe threadMale threadMore information please go link: 630

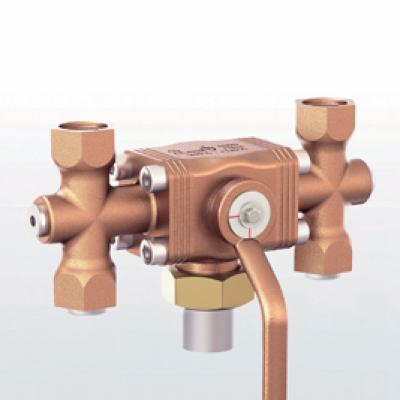

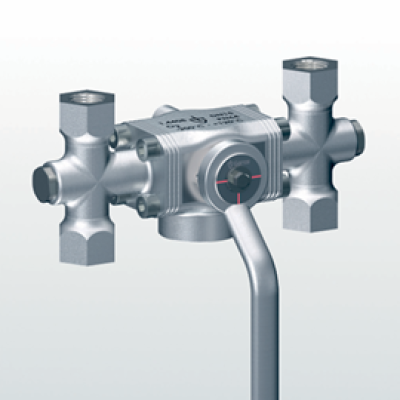

Product informationAs already implemented with the stainless steel series 2700, the gunmetal diverter ball valve 2780 possesses a flow geometry with very low pressure loss. The safe functionality of the safety valves mounted on the diverter ball valve is therefore better ensured.Additionally, opposite to the vertically mounted safety valves, there are also connections for bursting discs available. Due to the consistent cleaning of all component parts, the gunmetal diverter ball valve is also optimally suited for use in systems using oxygen.connection types Internal pipe threadMore information please go link: 2700
Product informationAs already implemented with the stainless steel series 2700, the gunmetal diverter ball valve 2780 possesses a flow geometry with very low pressure loss. The safe functionality of the safety valves mounted on the diverter ball valve is therefore better ensured.Additionally, opposite to the vertically mounted safety valves, there are also connections for bursting discs available. Due to the consistent cleaning of all component parts, the gunmetal diverter ball valve is also optimally suited for use in systems using oxygen.connection types Internal pipe threadMore information please go link: 2780
Product informationDiverter ball valve for the installation of for example two safety valves in combination with bursting discs for the protection of containers designed for the storage of cryogenic gases.The requirements of the PED relating to redundant or diverse safety devices are fulfilled by this fitting in combination with safety valves of the 2400 / 2480 series.On each side two additional connections for bursting discs are available. In case the safety valves need to be maintained or the bursting discs replaced, the side requiring maintenance can be shut off.connection types Internal pipe threadMale threadMore information please go link: 2781

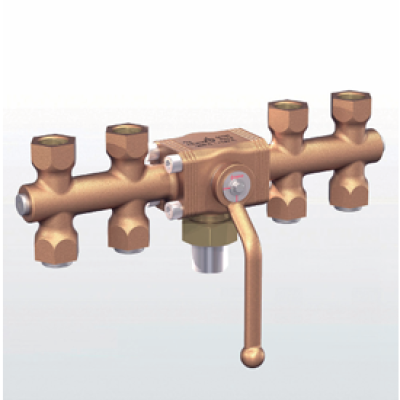

Product informationAs already implemented with the stainless steel series 2700, the gunmetal diverter ball valve 2780 possesses a flow geometry with very low pressure loss. The safe functionality of the safety valves mounted on the diverter ball valve is therefore better ensured.Additionally, opposite to the vertically mounted safety valves, there are also connections for bursting discs available. Due to the consistent cleaning of all component parts, the gunmetal diverter ball valve is also optimally suited for use in systems using oxygen.Additional connection options are provided for series 2782.connection types Internal pipe threadMale threadMore information please go link: 2782
Product informationDiverter ball valve for the installation of for example two safety valves in combination with bursting discs for the protection of containers designed for the storage of cryogenic gases.The requirements of the PED relating to redundant or diverse safety devices are fulfilled by this fitting in combination with safety valves of the 2400 / 2480 series. connection types Internal pipe threadMale threadMore information please go link: 2783

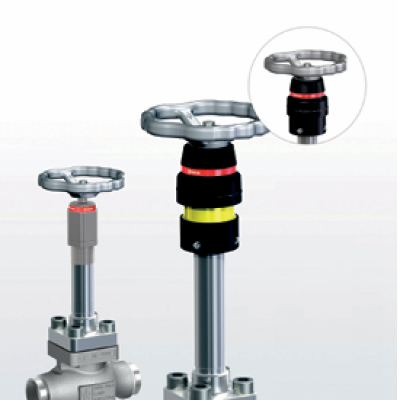

Product informationThe main function of the 2140 shut-off valve is the controlled opening and closing of pipeline sections via the valve seat integrated in the body.Due to the use of high-quality materials, the fitting can be used for cryogenic operation at temperatures down to-196°C. The shut-off valves are approved according to DIN EN 1626.The series is available in the nominal widths DN10 - DN50 and can be designed with connection options for welding ends and welding sockets. The manual valve actuator is operated via an ergonomically shaped handwheel, the open/closed position can be seen at all times via a visual position indicator.The valve upper section can be configured with three different actuator lengths depending on the application and operating environment.connection types Butt weldsSocket weldInternal pipe threadMore information please go link: 2140
