Series 601 Pressure relief valves made of gunmetal, with lever and weight, angle-type with threaded connections

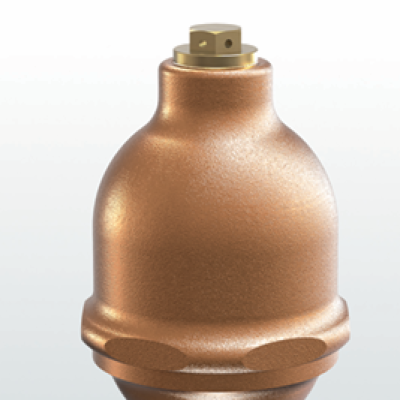

Product informationAir inlet and outlet via lateral bore holes in the seat screw.Order example for type 620 with connection 1/2": 620-15connection types Internal pipe threadMore information please go link: 620

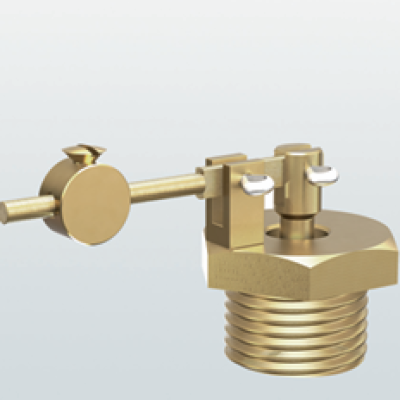

Product informationFor the protection of pressureless tanks and piping systems to avoid vacuum during discharging or cooling-down.These vacuum valves are also called „sniffing valves". They open in case of a vacuum and release the air until the vacuum has been alleviated.connection types Male threadMore information please go link: 625

Product informationA proven all-round valve with proportional operating characteristics and an extremely compact design.In addition to the basic version, these valves are also available for the most varied customer requirements as a gastight version or with lifting lever. The various sealing materials available mean that this valve is suitable for a wide range of media and temperatures.As a closed, gastight version without lifting mechanism it is suitable for all media. This makes this series an economcially interesting alternative for plants which do not require any approval or which do not fall under the PED.In addition, due to its relatively large setting range per spring, it is ideally suited in cases where either a stock valve for various applications and set pressures is required or if the customer is looking for an adjustable pressure relief valve.connection types Internal pipe threadMore information please go link: 628

Product informationThis angle-type pressure relief valve with double lever and weights offers precise protection against overpressure in the case of low set pressures.This is a versatile alternative if the system to be protected does not fall under PED and a compact version is not necessary.The set pressure can be very easily adjusted by the user.connection types Internal pipe threadMore information please go link: 612

Product informationThe strainers of the 2143 series consist of a straight-through housing made of high-quality stainless steel and, in the case of the 2183 series, of lead-reduced gunmetal. The strainer unit is integrated between the housing and the cover and can be designed with different mesh sizes. The installation of the strainer prevents contamination in the medium and in the downstream process. connection types Internal pipe threadButt weldsSocket weldMore information please go link: 2143

Product informationThe dirt traps are equipped with double strainers made of stainless steel. On request without surcharge also possible with coarse strainer. Order example for type 685 with connection 1" and version with coarse strainer: 685-25-GRReplacement part: double strainer made of stainless steelOrder code: 685DS-DNconnection types Internal pipe threadSoldering socketMore information please go link: 685
