Neles™ pneumatic cylinder actuators, series B1

Liên hệ
B1 Series
B1 Seires
Neles
Còn hàng

Neles double acting and spring return B1-series piston type quarter turn actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate almost any type of rotary valve.

  • Chia sẻ qua viber bài: Neles™ pneumatic cylinder actuators, series B1
  • Chia sẻ qua reddit bài:Neles™ pneumatic cylinder actuators, series B1

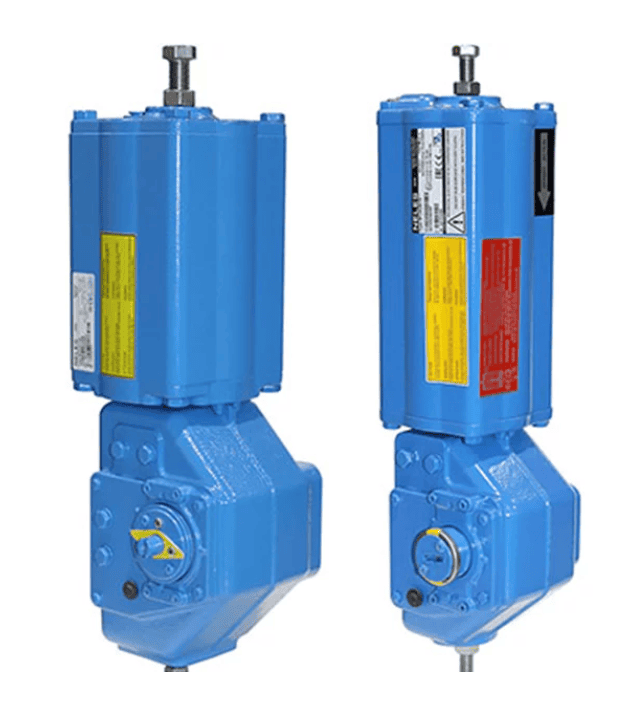

Neles™ pneumatic cylinder actuators, series B1

For use in both modulating control and on-off service

Features

  • Wear and corrosion resistant design
  • Safe and easy maintenance
  • Suitable for various services, from control to demanding ESD and arctic conditions
  • Vast number of optional features
  • Rugged design
  • Wide torque range
  • Type approval according to EN 15714-3

Applications

  • Emergency shutdown
  • Compressor anti-surge
  • High cycle control and on-off applications
  • High precision control
  • Arctic service

Specifications


Type:
Pneumatic cylinder actuator

Series:
B1C - double action


B1J - spring return

Supply pressure:
2.8 - 10 bar

Torque range:
28 - 100000 Nm

Temperature ranges:
-55 to +120 °C

Protection class:
IP66, IP67 (IEC 60529)

ATEX class:
Ex II 2G/D c IIC TX

Mounting face:
ISO 5211, VDI/VDE 3845



Tags

Sản phẩm liên quan

VALVCON™ ESR-Series electronic spring-return electric actuator
Liên hệ

VALVCON™ ESR-Series electronic spring-return electric actuator

The VALVCON ESR-Series electric actuator provides an internal bank of super-capacitor power storage devices that never need replacement. Designed for two-position operation, it provides true two-wire control: When the actuator is energized it drives to one position; when de-energized the actuator powers itself to the other position.
VALVCON™ ADC-Series continuous duty electric actuator
Liên hệ

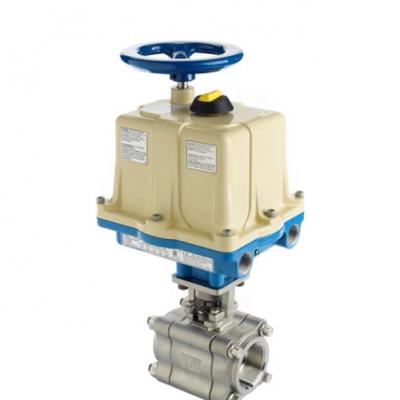

VALVCON™ ADC-Series continuous duty electric actuator

The VALVCON ADC-Series is a continuous-duty, and extremely versatile brushless DC electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. Notable standard features include universal power and control, holding brake, heater, and CSA (C US) certification, CE compliance and ATEX approval (WX models).
Easyflow by Neles™ rack and pinion actuator, series RNP
Liên hệ

Easyflow by Neles™ rack and pinion actuator, series RNP

Easyflow by Neles RNP series double-opposed piston rack and pinion actuators combine the benefits of high cycle life, a rugged construction, and an extremely compact and symmetrical design with a unique range of features and options. They are specifically designed for fast efficient operation of ball, butterfly, and other rotary type valves.
Neles™ pneumatic linear diaphragm actuator, series VD
Liên hệ

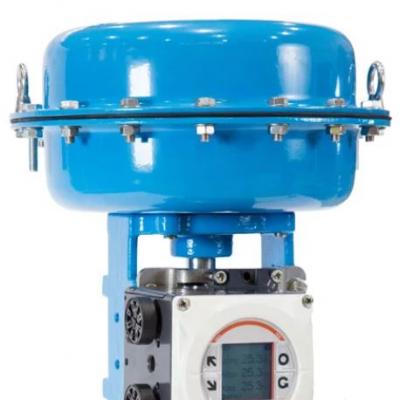

Neles™ pneumatic linear diaphragm actuator, series VD
