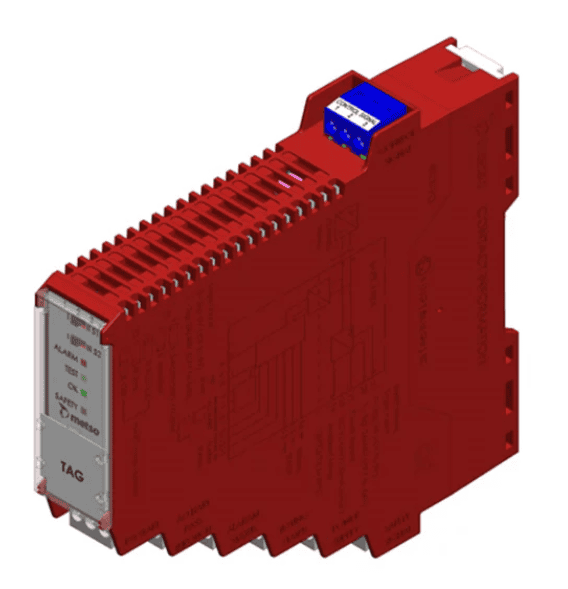

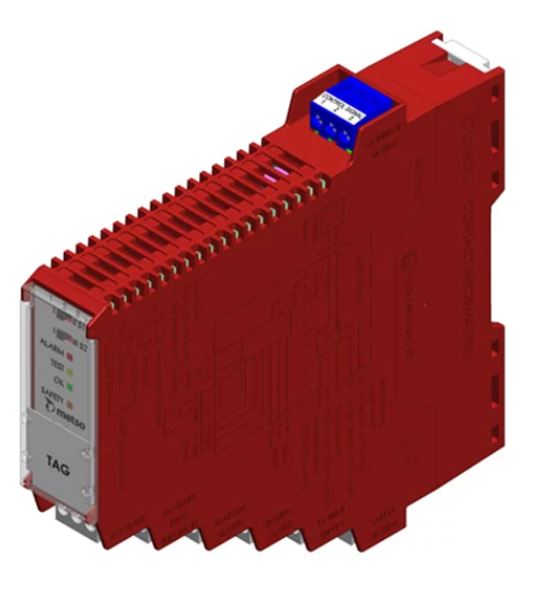

RCI9H2 for Neles™ ValvGuard™ VG9000

Liên hệ
RCI Card
RCI Card
Neles
Còn hàng

RCI9H2 is intended to be used together with the Neles ValvGuard VG9000H. It is needed when a 24 VDC output (DO) is used in the safety system. RCI9H2 is connected between the safety system and the field device VG9000H. The primary function of RCI9H2 is to convert a safety DO into a SIL 3 compatible 4-20mA current signal. RCI9H2 also provides relay outputs for monitoring the test and alarm status of the VG9000H.



  • Chia sẻ qua viber bài: RCI9H2 for Neles™ ValvGuard™ VG9000
  • Chia sẻ qua reddit bài:RCI9H2 for Neles™ ValvGuard™ VG9000

RCI9H2 for Neles™ ValvGuard™ VG9000

RCI9H2 is intended to be used together with the Neles ValvGuard VG9000H. It is needed when a 24 VDC output (DO) is used in the safety system. RCI9H2 is connected between the safety system and the field device VG9000H. The primary function of RCI9H2 is to convert a safety DO into a SIL 3 compatible 4-20mA current signal. RCI9H2 also provides relay outputs for monitoring the test and alarm status of the VG9000H.



RCI9H2 is intended to be used together with the Neles ValvGuard VG9000H. It is needed when a 24 VDC output (DO) is used in the safety system. RCI9H2 is connected between the safety system and the field device VG9000H. The primary function of RCI9H2 is to convert a safety DO into a SIL 3 compatible 4-20mA current signal. RCI9H2 also provides relay outputs for monitoring the test and alarm status of the VG9000H.

Features

  • 24 VDC input from ESD system
  • 4/20 mA output to VG9000H
  • Two status relays (test, alarm)
  • PST start via separate 24 VDC input
  • HART communication
  • Isolated Ex barrier
  • Up to SIL3 acc. to IEC 61508

Benefits

RCI9H2 for VG9000H provides reliable and safe status information of ESD valves for shutdown systems. Included isolated barrier eliminates additional component need in intrisically safe applications.

Applications

  • SIL 3 certified according to IEC 61508
  • HART communication
  • Status relays

Specifications


Input signal
24 - 48 VDC
Output signal
4/20 mA
Power supply
24 - 48 VDC
Communication
HART
Status relays
Test and alarm
Appvovals
ATEX/IECEx Ex II (1) G [Ex ia Ga] IIC

Tags

Sản phẩm liên quan

Emergency shutdown valves
Liên hệ

Emergency shutdown valves

Reliable intelligent emergency shutdown (ESD) valves and actuators with Neles™ ValvGuard™ intelligent valve controllers improve your plant safety cost efficiently. In Neles we have combined our know-how of valves, actuators, safety standards (IEC61508/61511), applications, system operability and partial stroke test devices with intelligent prediction tools. Diagnostic information is presented understandably to enable planned maintenance of potentially failing valve assemblies before they have a chance to impact the process or safety.
Neles™ ValvGuard™ VG9000 – intelligent safety solenoid
Liên hệ

Neles™ ValvGuard™ VG9000 – intelligent safety solenoid

Neles ValvGuard is a top class intelligent safety solenoid with partial stroke testing features for emergency shutdown and venting valves. Based on the automatic PST and other diagnostics data, VG9000 increases safety and plant safety targets can be reached more economically than with other solutions.

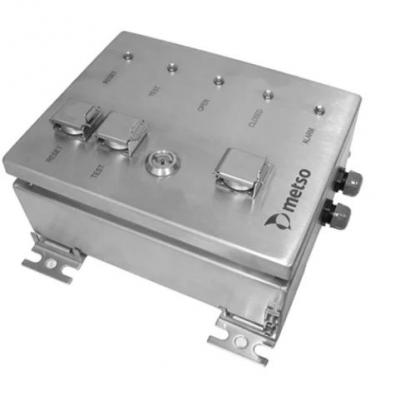

LCP9H for Neles™ ValvGuard™ VG9000
