VALVCON™

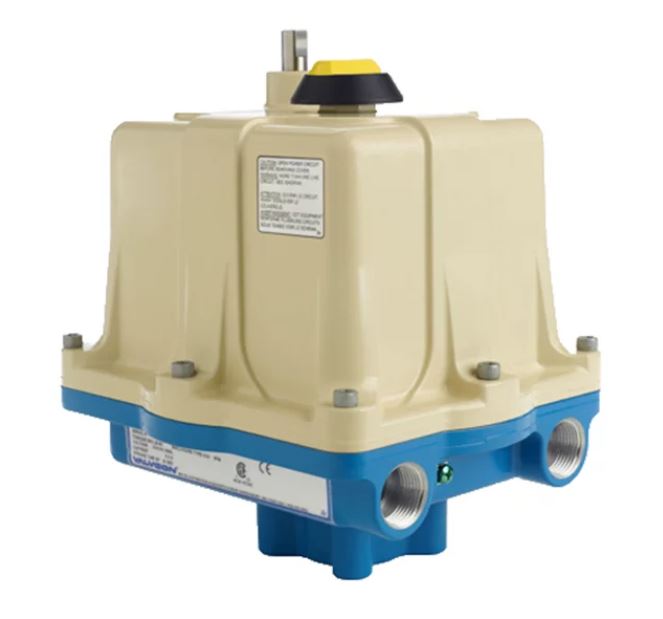

I-Series network capable electric actuator
Network capable electric actuators
The VALVCON I-Series is a compact, rugged, reliable electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. I-Series actuators can be equipped with AS-i, DeviceNet, or Foundation Fieldbus options for interface with the respective network.
Features
Compact and lightweight
Wide range of protocol options
Easy to use electronics with clearly labeled terminals and coded option connectors
High standard duty cycle
Agency approvals are standard on most models
Network scheme saves wiring
Common use cases
High duty-cycle network applications
On/Off service with feedback over network
Modulating service with feedback over netwo
Applicable industries
Specifications
| | |
|---|
SERIES | I & LI |
TORQUE OUTPUT | 17-68 Nm, 150-600 lb-in, 12-50 lb-ft, Series I |
| 113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft, Series LI |
DUTY CYCLE*) | 75% @ 40°C / 104°F |
OPERATION | Reversing |
ENCLOSURE**) | NEMA 4/4X or NEMA 4/4X/7&9 |
TEMPERATURE RANGE | -40°C to 66°C / -40°F to 150°F |
VOLTAGE | 115VAC, 230VAC |
| *) Duty Cycle is 55% for 3000 lb-in models |
| **) CSA (C US) Certification standard on most models |
