Rugged, reliable, versatile, and worry-free performance

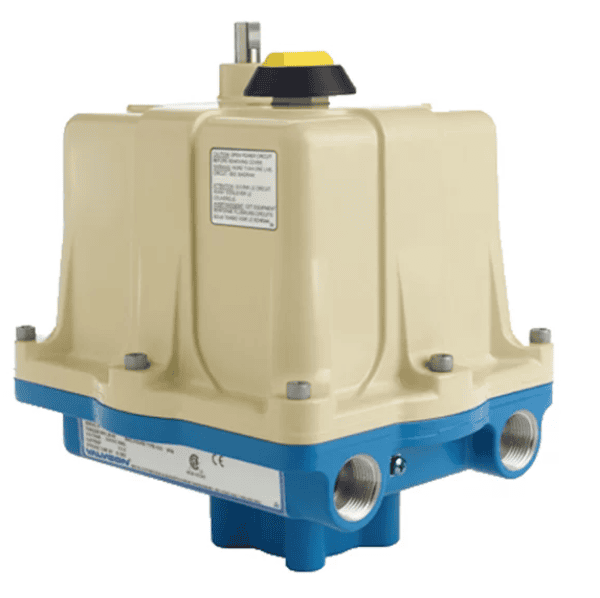

The VALVCON V-Series is a compact, rugged, reliable electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. Notable standard features include all hardened steel spur gears, standard ISO 5211 mounting interfaces and CSA (C US) certification, CE compliance and ATEX approval (WX models).
Series | V & LV |
TORQUE OUTPUT | 17-68 Nm, 150-600 lb-in, 12-50 lb-ft Series V |
113-339 Nm, 1000-3000 lb-in, 83-250 lb-ft Series LV | |
DUTY CYCLE*) | 75% @ 40°C / 104°F |
OPERATION | Reversing |
ENCLOSURE**) | NEMA 4/4X or NEMA 4/4X/7&9 |
TEMPERATURE RANGE | -40°C to 66°C / -40°F to 150°F |
ATEX Temperature range -20°C to 66°C / -4°F to 150°F | |
VOLTAGE | 115VAC 50/60 Hz (1PH), 230VAC 50/60 Hz (1PH) |
*) Duty Cycle is 55% for 3000 lb-in models**) CSA (C US) Certification and CE Compliance standard; NEMA 4/4X/7&9 models are Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III; and also certified to ATEX Directive 2014/34/EU: Ex db IIB T6 Gb, IECEx CSA 14.0057X. |
