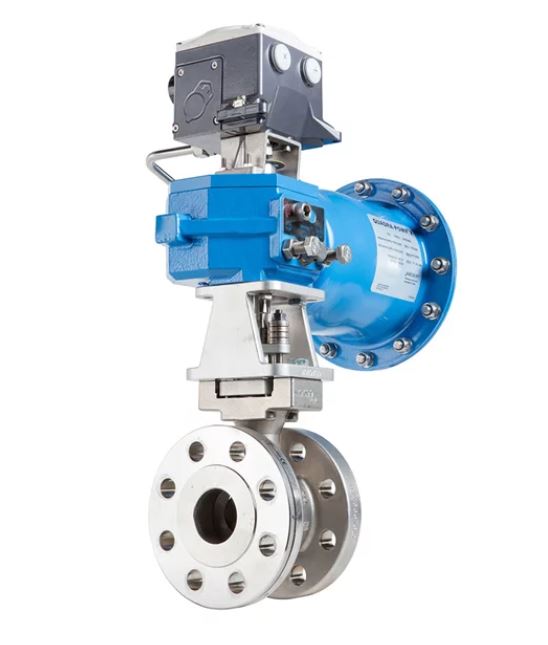

    Eccentric rotary plug valves, series FC

    Liên hệ
    FC Series
    FC series
    Neles
    Còn hàng

    Neles™ Finetrol™ eccentric rotary plug valve is designed for liquid, gas, vapor and slurry control in general and demanding applications. Excellent control performance and capability to handle impure fluids makes Finetrol well suited in refining and petrochemical industry applications.

    • Chia sẻ qua viber bài: Eccentric rotary plug valves, series FC
    • Chia sẻ qua reddit bài:Eccentric rotary plug valves, series FC

    Eccentric rotary plug valves,
    series FC

    Designed to provide the best control accuracy and wide rangeability

    Neles™ Finetrol™ eccentric rotary plug valve is designed for liquid, gas, vapor and slurry control in general and demanding applications. Excellent control performance and capability to handle impure fluids makes Finetrol well suited in refining and petrochemical industry applications.

    Features

    • Heavy duty anti-blowout shaft.
    • Rotating, dynamic Q-trim™ attenuator for anti-cavitation and noise abatement. Q-trim attenuator is a self flushing design and capable to handle dirty fluids also.
    • Low emissions according to ISO 15848 with wide temperature range and the longest endurance class.
    • Certified safety performance, capable to SIL 3 level according to IEC 61508.
    • Fire safe certification according to API 607, 6th edition.

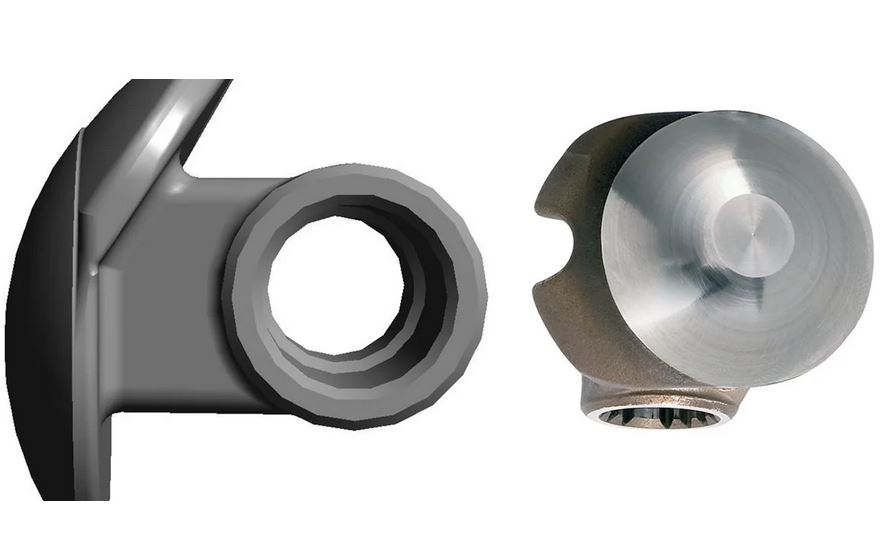

    • Unique balanced plug design reduces dynamic torque and allows accurate, stable control for the full 90 degrees rotation.
    • Versatile mounting orientations.

    Applications

    • Refining
    • Petrochemicals
    • Chemicals
    • Natural gas
    • Fertilizers
    • Power

    Specifications


    Body construction
    Flanged
    Body pressure rating
    PN 10 - 100 / ASME Class 150 - 600
    Face to face
    According to IEC 60534-3-2 / ISA 75.08.02 or IEC 60534-3-1
    Size range
    DN 25 - 300 / 1" - 12"
    Temperature range
    -200 °C … +450 °C / -328 ...+842 °F
    Tightness
    According to ANSI/FCI 70-2 class V (metal seat) and class VI (soft seat)
