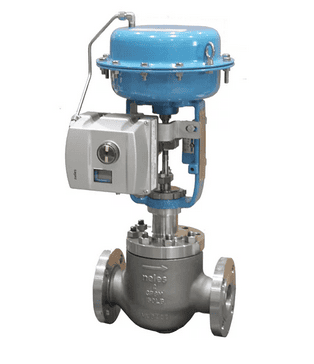

    Neles™ top-guided globe valve, series GU

    Liên hệ
    NELES GLOBE
    Globe
    Neles
    Còn hàng

    Superior control performance and high reliability for wide range of applications from general to demanding service.

    • Chia sẻ qua viber bài: Neles™ top-guided globe valve, series GU
    • Chia sẻ qua reddit bài:Neles™ top-guided globe valve, series GU

    Neles series GU globe valves provide superior control performance and high reliability in wide range of applications. Standard units are equipped with Neles diaphragm actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.

    Features

    • One piece body to minimize the leak paths
    • Top-entry construction and quick-change trim for easy maintenance
    • Rugged top-guided trim construction and hardened trim surfaces for extended lifetime as default
    • Wide variety of trim capacities and characteristics to optimize valve performance
    • Multi-hole Tendril™ trim to reduce noise or to eliminate cavitation
    • Micro trim for extreme low flow applications
    • Wide material selection available for different applications
    • Flanged and welding-end body options
    • Low emissions according to ISO 15848, bellows packing available
    • NACE material options
    • SIL 3 certified
    • API 607 fire certified
    • Special cleaning optional for oxygen, cryogenic etc. service

    Applications

    • Oil and gas production
    • Petrochemicals
    • Chemicals
    • Power plants
    • Pulp & Paper
    • Industrial gas
    • LNG

    Specifications


    Series
    GU
    Design
    Unbalanced, top-guided
    Size range
    DN 15 - 150 / 1/2" - 6"
    Pressure classes
    ASME 150 – 2500 / PN10 – 320 / JIS 10K – 20K
    Temperature range
    -200 to +593 °C / -320 to +1053 °F
    Tightness
    ANSI/FCI 70-2 class IV / V (metal seat) and VI (soft seat)
