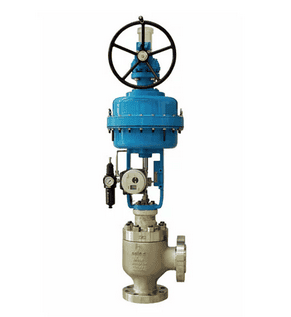

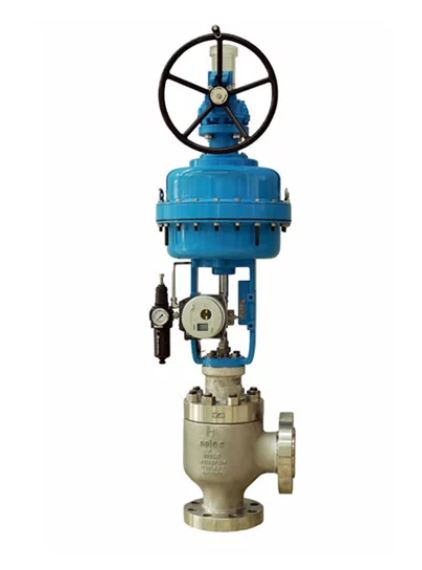

    Neles™ top-guided angle valves, series AU

    Liên hệ
    Series AU
    Series AU
    Neles
    Còn hàng

    Neles series AU globe valves provide superior control performance and high reliability in applications where pressure drop and velocities are high. Angle valves are commonly used in flashing applications or in piping layouts with limited amount of space. Standard units are equipped with Neles diaphragm actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.

    • Chia sẻ qua viber bài: Neles™ top-guided angle valves, series AU
    • Chia sẻ qua reddit bài:Neles™ top-guided angle valves, series AU

    Features

    • One piece body to minimize the leak paths
    • Angle body pattern for angle pipeline installations
    • Especially suitable for flashing applications because high velocity flow can be guided through the valve with minimal contact to body and internals which increases valve lifetime
    • Top-entry construction and quick-change trim for easy maintenance
    • Rugged top-guided trim construction and hardened trim surfaces for extended lifetime as default
    • Wide variety of trim capacities and characteristics to optimize valve performance
    • Multi-hole Tendril™ trim to reduce noise or to eliminate cavitation
    • Wide material selection available for different applications
    • Flanged and welding-end body options
    • Low emissions according to ISO 15848, bellows packing available
    • NACE material options
    • SIL 3 certified
    • Special cleaning optional for oxygen, cryogenic etc. service

    Applications

    • Oil and gas production
    • Petrochemicals
    • Chemicals
    • Power plants
    • Pulp & Paper
    • Industrial gas
    • LNG

    Specifications


    Series
    AU
    Design
    Unbalanced, top-guided
    Size range
    DN 15 - 150 / 1/2" - 6"
    Pressure classes
    ASME 150 – 2500 / PN10 – 320
    Temperature range
    -200 to +593 °C / -320 to +1053 °F
    Tightness
    ANSI/FCI 70-2 class IV / V (metal seat) and VI (soft seat)
