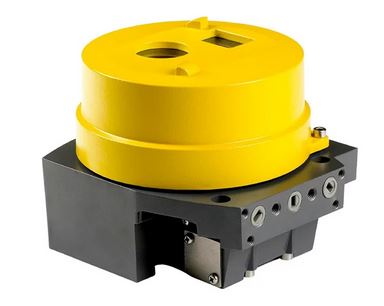

Neles™ SwitchGuard™ SG9000 – intelligent on/off valve controller

Liên hệ
SG9000
SG9000
Neles
Còn hàng

Neles SwitchGuard is a top class intelligent on/off valve controller designed to operate on any valve actuator. Large pneumatics capacity and embedded diagnostic features enable users to guarantee the availability of their switching and high cycling valves in demanding processes.

  • Chia sẻ qua viber bài: Neles™ SwitchGuard™ SG9000 – intelligent on/off valve controller
  • Chia sẻ qua reddit bài:Neles™ SwitchGuard™ SG9000 – intelligent on/off valve controller

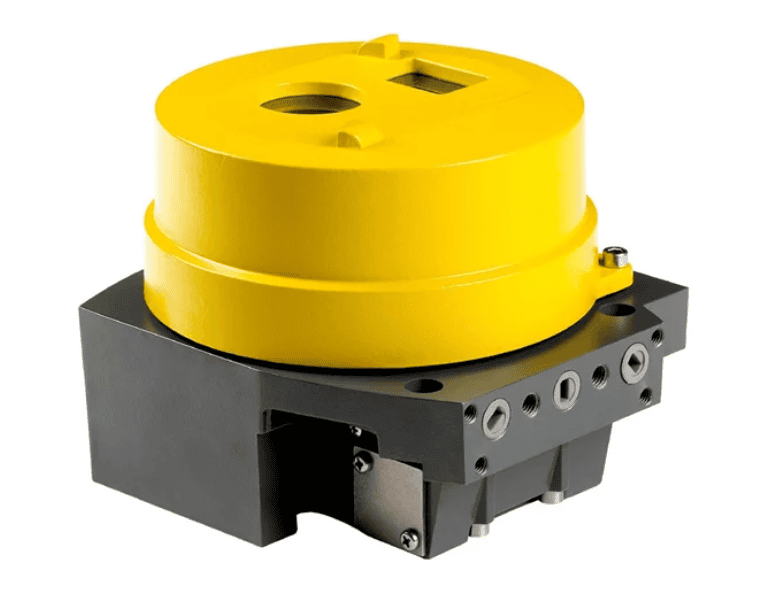

Neles™ SwitchGuard™ SG9000 – intelligent on/off valve controller

Reliable operation and predictive maintenance



Neles SwitchGuard is a top class intelligent on/off valve controller designed to operate on any valve actuator. Large pneumatics capacity and embedded diagnostic features enable users to guarantee the availability of their



Neles SwitchGuard is a top class intelligent on/off valve controller designed to operate on any valve actuator. Large pneumatics capacity and embedded diagnostic features enable users to guarantee the availability of their switching and high cycling valves in demanding processes.

Features

SwitchGuard’s pneumatic capacity easily replaces any solenoid valve and other pneumatics accessories, providing a simple and reliable interface with the process control system. Programmable speed control enables adjusting the opening/closing times easily and provides trouble free long term valve operation. Diagnostic information is presented in easily understandable way to enable planned maintenance of potentially failing valve assemblies before they have chance to impact on the process.

Applications

  • High cycling on/off service
  • Process critical on/off service
  • Diagnostics for on/off valves


Specifications


Supply power:
Loop powered, 4-20 mA. Binary 24 VDC possible via U/I converter
Communication:
HART
Temperature range:
-40 °C … +85 °C
Material:
Anodized aluminum or stainless steel
Max. exhaust capacity:
700 Nm3/h (Cv 6.4)
Hazardous area approvals:
Ex d, Ex ia (for complete list see technical bulletin)



Tags

Sản phẩm liên quan

Neles™ R- series segmented ball valve for on-off applications
Liên hệ

Neles™ R- series segmented ball valve for on-off applications

New Neles segmented ball valve for on-off applications combines the material efficient control valve design with the high capacity and proven performance of Neles on-off valve seating technology. Standard units are equipped with cylinder or manual actuators and intelligent on-off valve controllers to ensure excellent and reliable isolating performance
Neles™ MC V-port segment valves, series R2
Liên hệ

Neles™ MC V-port segment valves, series R2

Neles has created a specially designed Series R2 segment valves for 8-19 % medium consistency applications. The valve provides an optimized flow path for medium consistency pulp. The flow path is continuously increased to eliminate restrictions where material may build up. The outlet flange is one size bigger than the inlet to ensure this. V-contoured flow path enables to control small capacities without risk of dewatering.
Neles™ high performance butterfly valve, series BWX
Liên hệ

Neles™ high performance butterfly valve, series BWX

Neles BWX series high performance butterfly valve has been especially designed for use in cryogenic applications with high quality CrNi steel. Testing of the valve includes cold shock test and it can be used for gaseous and liquid oxygen, LNG, nitrogen, hydrogen and other cryogenic fluids.
Emergency shutdown valves
Liên hệ

Emergency shutdown valves

Reliable intelligent emergency shutdown (ESD) valves and actuators with Neles™ ValvGuard™ intelligent valve controllers improve your plant safety cost efficiently. In Neles we have combined our know-how of valves, actuators, safety standards (IEC61508/61511), applications, system operability and partial stroke test devices with intelligent prediction tools. Diagnostic information is presented understandably to enable planned maintenance of potentially failing valve assemblies before they have a chance to impact the process or safety.
Neles™ NDX valve controller - Performance perfected
Liên hệ

Neles™ NDX valve controller - Performance perfected

Neles NDX valve controller provides a solution for all valve brands in a wide range of applications regardless of customer or industry. The product delivers all the robustness and reliability you’d expect from a valve controller by Neles. At the same time it is extremely easy to install and use.

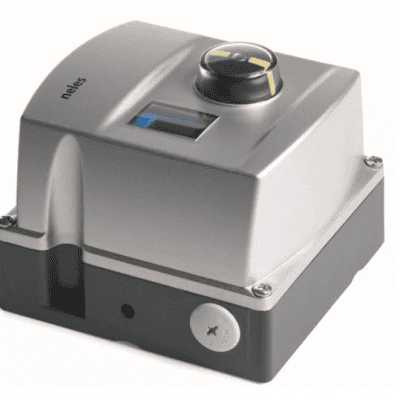

Neles™ ND9000 intelligent valve controller
