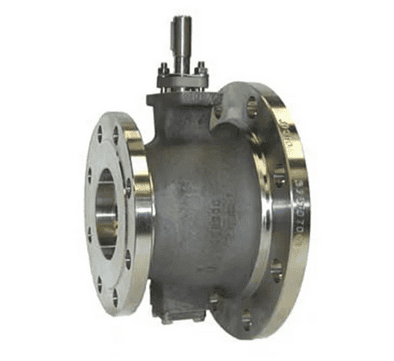

    Neles™ MC V-port segment valves, series R2

    Liên hệ
    MC V-port
    MC V-port
    Neles
    Còn hàng

    Neles has created a specially designed Series R2 segment valves for 8-19 % medium consistency applications. The valve provides an optimized flow path for medium consistency pulp. The flow path is continuously increased to eliminate restrictions where material may build up. The outlet flange is one size bigger than the inlet to ensure this. V-contoured flow path enables to control small capacities without risk of dewatering.

    • Chia sẻ qua viber bài: Neles™ MC V-port segment valves, series R2
    • Chia sẻ qua reddit bài:Neles™ MC V-port segment valves, series R2

    Features

    • Integral body construction
    • Rugged, self-adjusting metal seat
    • Protected bearings
    • Materials for dioxide bleaching stages
    • Versatile mounting orientations.

    Specifications


    Series
    R2, flanged
    Size range
    DN 50 - 500 / 2" - 20"
    Pressure classes
    PN 25 / ASME 150
    Temperature range
    -40 ... +260 °C
