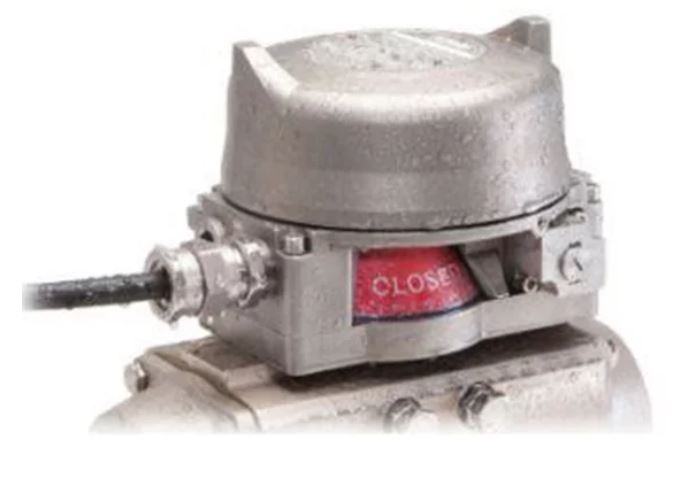

Axiom™ AX explosionproof on/off valve controller

Liên hệ
AXIOM AX
AXIOM AX
Neles
Còn hàng

The Axiom AX platform integrates solid state valve monitoring capabilities with discrete solenoid control for process on/off automated valves. It is suitable for most hazardous locations and general purpose process applications.

  • Chia sẻ qua viber bài: Axiom™ AX explosionproof on/off valve controller
  • Chia sẻ qua reddit bài:Axiom™ AX explosionproof on/off valve controller

Axiom™ AX explosionproof on/off valve controller

Highly reliable integrated discrete valve controller

The Axiom AX platform integrates solid state valve monitoring capabilities with discrete solenoid control for process on/off automated valves. It is suitable for most hazardous locations and general purpose process applications.

Features

  • Epoxy coated anodized aluminum enclosure
  • Available in optional 316 Stainless Steel enclosure
  • Universal voltage solenoid and switching
  • Convenient push button switch setting
  • Robust solenoid valve with standard rebreather
  • Diagnostic versions available
  • Space efficient design
  • Rebreather system minimizes corrosive ingestion for single-acting actuators
  • Diagnostic versions aid in trouble-shooting and anticipate problems to increase plant uptime and reduce maintenance costs
  • Compact design minimizes valve-actuator assembly dimensional envelope
  • 316 Stainless Steel enclosure for extremely corrosive conditions

Applications

  • Automated On/Off valve applications in hazardous process environments
  • Corrosive and wash down process environments
  • Chemical process
  • Food and beverage
  • Pharmaceutical and biotech
  • Marine & offshore
  • Oil & gas
  • Agri-processing


Control and monitor an automated on/off valve in all process areas

The Axiom monitors and reports valve position with Visual indicator and signals to the controller.  The Axiom AX has integral single or dual coil solenoid valves to control position of the actuated valve.

Specifications


AX33/ AX35:
Universal voltage switching and solenoid
AX44:
Namur sensors (7-24 VDC)
Communication options:
AS-Interface, Foundation Fieldbus, DeviceNet and Hart
Temperature range:
-40 °C … +80 °C / -40 °F ... +176 °F
Material:
Epoxy coated anodized aluminum or 316L stainless steel
Flow capacity:
0.7 Cv or 1.2 Cv
Hazardous area approvals:
Ex d, Ex i, Class I, Division 1 and Class I, Division 2
