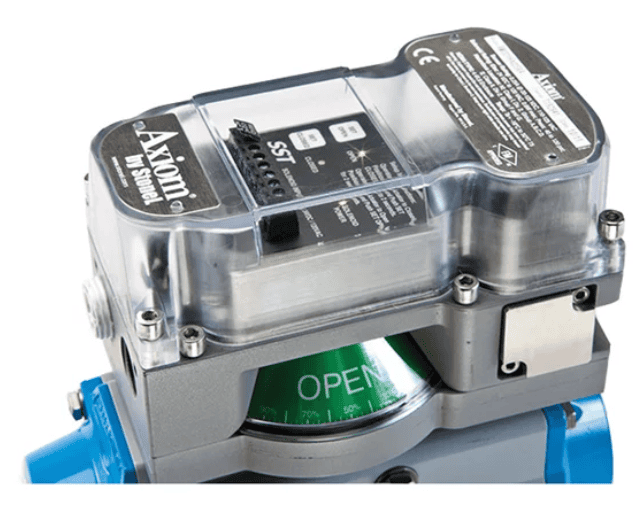

Axiom™ AMI nonincendive & I.S. on/off valve controller
Highly reliable integrated discrete valve controller
The Axiom AMI platform integrates solid state valve monitoring capabilities with discrete solenoid control for process on/off automated valves. It is suitable for most hazardous locations and general purpose process applications.
Features
- Epoxy coated anodized aluminum enclosure
- Convenient push button switch setting
- Robust solenoid valve with standard rebreather
- Diagnostic versions available
- Space efficient design
- Rebreather system minimizes corrosive ingestion for single-acting actuators
- Diagnostic versions aid in trouble-shooting and anticipate problems to increase plant uptime and reduce maintenance costs
- Compact design minimizes valve-actuator assembly dimensional envelope
Applications
- Automated On/Off valve applications in hazardous process environments
- Corrosive and wash down process environments
- Chemical process
- Pharmaceutical and biotech
- Marine & offshore
- Oil & gas
- Agri-processing
Control and monitor an automated on/off valve in all process areas
The Axiom monitors and reports valve position with Visual indicator and signals to the controller. The Axiom has integral single or dual coil solenoid valves to control position of the actuated valve.
Specifications
| |
---|
AMI80: | 24V 4-20 mA control and feedback |
Communication options: | AS-Interface, Foundation Fieldbus and Hart |
Temperature range: | -40 °C … +80 °C / -40 °F … +176 °F |
Material: | Epoxy coated anodized aluminum housing, with polycarbonate cover |
Flow capacity: | 0.7 Cv |
Hazardous area approvals: | Class I, Division 1 and Class I, Division 2 (for complete list see technical bulletin) |
