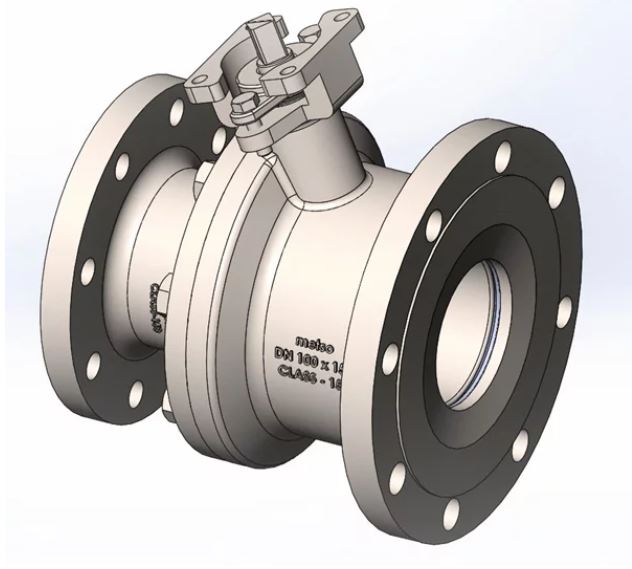

Easyflow by Neles™ JT series angle stem tank bottom valves
Flanged floating ball valve for tank bottom applications
Easyflow by Neles JT series angle stem tank bottom valves provide a compact assembly with additional space for actuator clearance on insulated vessels. Large port has unobstructed flow to empty or fill the tank quickly. Quarter-turn operation and direct actuator mounting capability makes it easy to automate. Cavity fill and T-port options for the JT series ensure lowest possible dead volume and full draining of media from the valve.
Angle stem tank bottom valves
Features
- Unique low torque seat design maintains tight shut-off through pressure and temperature
cycles is standard for valves without cavity fill - Enlarged flow port with compact face to face dimensions provides higher flow capacity
- ISO 5211 mounting pad for direct mounting of handle, gear operator, manual override, or actuator
- An extremely tight fit drive between the stem and ball provides accurate and repeatable shut-off and control
- Cavity fill option includes solid seats to prevent media being trapped inside the cavity
- Optional T-port ball provides draining of the cavity between the seats when the valve is closed
- When combined, cavity fill and T-port ball option provides the best solution to avoid media inside
the valve - Every valve is 100% factory tested before it is packed and shipped
- The valve comes with large end flanges for direct mounting with the tank bottom
Benefits
- Complete package reliability and single source responsibility with Neles full range of actuators, switches, and intelligent valve controllers.
- Cavity fill and T-port options for the JT series ensure lowest possible dead volume and full draining of media from the valve
Applications
- Pharmaceutical
- Biotech
- Cosmetic
- Food
- Chemical
Specifications
| | |
|---|
Nominal diameter: | DN25 – DN150 (NPS 1 – 6) |
Pressure rating: | Class 150 |
Flange accommodation: | ASME B16.5 Class 150 |
Face to face dimensions: | Manufacturers standard |
Vacuum rating: | Up to 20 inch Hg gauge or 26 kPa(a) |
Leakage: | 100% tightness at full differential pressure rating |
Standards followed: | BS EN 17292, ASME B16.34, API 598, BS EN 12266 |
Note: The main dimensions of the valve assembly needs to be considered during the installation. | |
