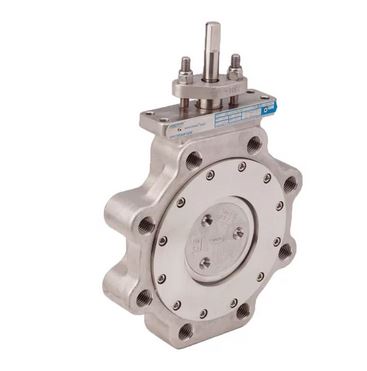

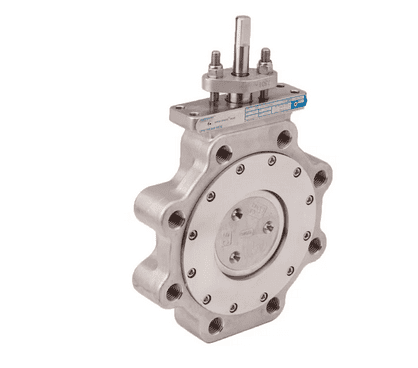

    Jamesbury™ Wafer-Sphere™ butterfly valve, series 800

    Liên hệ
    Series 800
    Series 800
    Jamesbury
    Còn hàng

    Jamesbury Wafer-Sphere™ high-performance butterfly valves combine unique off-center disc, proprietary seat design and Xtreme™ sealing technology. Tight, long-lasting sealing, and yet light and low-cost design makes it a good alternative to gate valves and other heavier rotary-type designs.

    • Chia sẻ qua viber bài: Jamesbury™ Wafer-Sphere™ butterfly valve, series 800
    • Chia sẻ qua reddit bài:Jamesbury™ Wafer-Sphere™ butterfly valve, series 800

    Jamesbury™ Wafer-Sphere™ butterfly valve, series 800

    Wafer-Sphere resilient seated butterfly valve



    Jamesbury Wafer-Sphere™ high-performance butterfly valves combine unique off-center disc, proprietary seat design and Xtreme™ sealing technology. Tight, long-lasting sealing, and yet light and low-cost design makes it a good alternative to gate valves and other heavier rotary-type designs.

    Features

    • Driveshaft with trunnion (Model D only) or through shaft
    • High flow capacity design (Model D)
    • Robust engineering design
    • Flexible lip seat technology
    • Low emissions stem seal technology
    • Fire-tested & cryogenic designs
    • High cycle options
    • High quality

    Specifications


    Series
    800 series (Model D)
    800 series
    Size range
    3" - 12" (excluding 5")
    2 ½” – 60”
    Design
    Wafer, lug and double flanged
    Wafer or lug
    Maximum temperature
    +260 °C / +500 °F
    +260 °C / +500 °F
    Pressure rating
    ASME Class 150 - 300/ PN 10 - 40
    ASME Class 150, 300 & 600
    Materials
    Carbon steel, Stainless steel, Monel
    Carbon steel, Stainless steel, Monel, Hastelloy C
