    Easyflow by Neles™ limit switches, series K

    Liên hệ
    Series K
    Series K
    Neles
    Còn hàng

    The Easyflow by Neles K-series features versatile limit switches for quarter turn actuators and valve assemblies. With the K-series limit switches our customers receive reliable end limit information of desired rotary travel. Actuator movement is transferred via the unit shaft to preset cams that actuate either inductive or mechanical switching elements, that can be connected to an external monitoring system. Available in selected market areas.

    Đặt hàng
    So sánh
    Yêu thích
    • Chia sẻ qua viber bài: Easyflow by Neles™ limit switches, series K
    • Chia sẻ qua reddit bài:Easyflow by Neles™ limit switches, series K

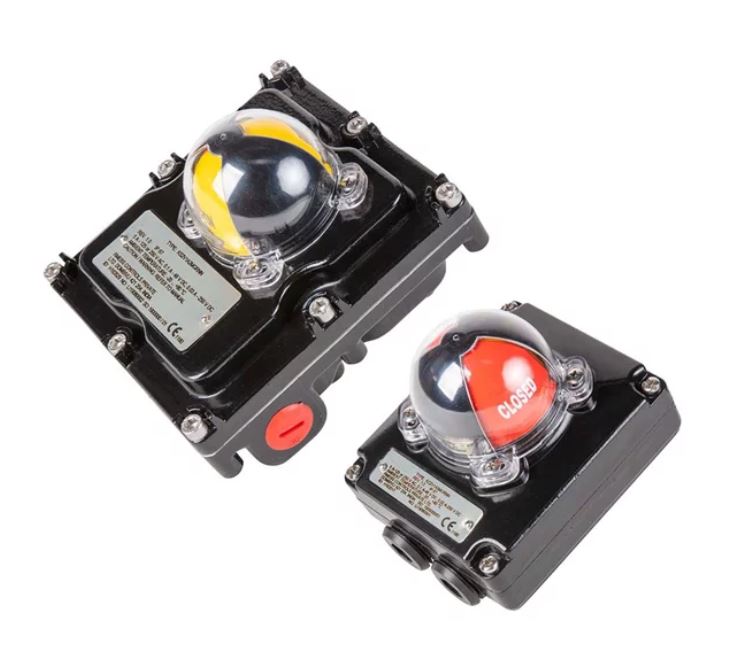

    Easyflow by Neles™ limit switches, series K

    Compact limit switch for wide range of applications

    The Easyflow by Neles K-series features versatile limit switches for quarter turn actuators and valve assemblies. With the K-series limit switches our customers receive reliable end limit information of desired rotary travel. Actuator movement is transferred via the unit shaft to preset cams that actuate either inductive or mechanical switching elements, that can be connected to an external monitoring system. Available in selected market areas.

    Features

    • Choice of two switches
      - Inductive
      - Mechanical
    • Large and highly visible visual indicator
    • VDE/VDI 3845 mounting face with NAMUR shaft enables wide connectivity
    • KS-series with dual cable entries
    • KC-series with three cable entries
    • Easily adjustable color coded cams
    • IP67 ingress protection class as standard
    • Solenoid valve termination provided inside limit switch enclosure (with mechanical switches)



    Applications

    • Automated on/off valve applications
    • Corrosive and wash down process environment
    • Food and beverage
    • Chemical process
    • Pharmaceutical and biotech
    • Agri-processing
    • Oil and gas
    • Marine and offshore
    • Pulp and paper

    Specifications


    Product series:
    KS = standard housing

    KC = compact housing
    Housing material:
    Epoxy powder coated diecast aluminum (LM6)

    Stainless steel (CF8M, equivalent to AISI316)

    Polycarbonate (Lexan) (only for KC-series)
    Cable entries:
    2 pcs for KS

    3 pcs for KC
    Cable entry options:
    M20x1,5

    ½”NPT
    Temperature range:
    -20 °C to +80 °C
    Hazardous area approvals:
    No approvals
    Ingress protection class:
    IP67
