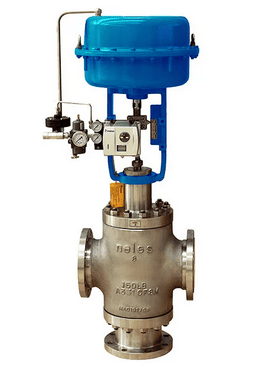

Neles™ 3-way globe valve, series GW

Liên hệ
GW Series
GW Series
Neles
Còn hàng

Neles series GW globe valves provide superior control performance and high reliability in mixing and diverting applications. Standard units are equipped with Neles diaphragm actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.

  • Chia sẻ qua viber bài: Neles™ 3-way globe valve, series GW
  • Chia sẻ qua reddit bài:Neles™ 3-way globe valve, series GW

Features

  • Top and bottom entry construction for easy maintenance
  • Rugged and stable top-guided and seat-guided trim construction and hardened trim surfaces for extended lifetime as default
  • Wide variety of trim capacities and characteristics to optimize valve performance
  • Wide material selection available for different applications
  • Flanged and welding-end body options
  • Low emissions according to ISO 15848, bellows packing available
  • NACE material options
  • SIL 3 certified

Applications

  • Oil and gas production
  • Petrochemicals
  • Chemicals
  • Power plants
  • Industrial gas

Specifications


Series
GW
Design
Unbalanced, top & seat-guided
Size range
DN 25 - 250 / 1" - 10"
Pressure classes
ASME 150 – 600 /PN10 – 100
Temperature range
-29 to +425 °C / -20 to +797 °F
Tightness
ANSI/FCI 70-2 class II - IV
