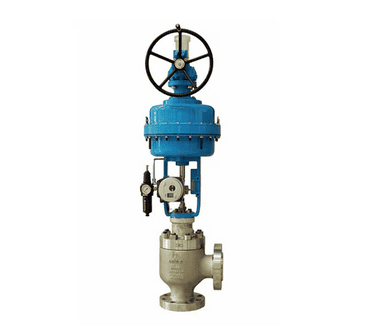

Neles™ Omega™ angle valve, series AM

Liên hệ
AM
AM
Neles
Còn hàng

Neles series AM globe valves provide superior control performance and high reliability in demanding applications where noise or cavitation need to be eliminated. Standard units are equipped with Neles diaphragm or piston actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.

  • Chia sẻ qua viber bài: Neles™ Omega™ angle valve, series AM
  • Chia sẻ qua reddit bài:Neles™ Omega™ angle valve, series AM

Features

  • One piece body to minimize the leak paths
  • Angle body pattern for angle pipeline installations - especially suitable for severe applications with high pressure drop and erosive fluid
  • Top-entry construction and quick-change trim for easy maintenance
  • Rugged top-guided or heavy-duty cage-guided trim constructions and hardened trim surfaces for extended lifetime as default
  • Omega multi-stage disk stack trim technology for eliminating noise or cavitation in high pressure drop applications
  • Wide variety of trim capacities, characteristics and trim stages to optimize valve performance
  • Wide material selection available for different applications
  • Flanged and welding-end body options
  • Low emissions according to ISO 15848, bellows packing available
  • NACE material options
  • SIL 3 certified
  • Special cleaning optional for oxygen, cryogenic etc. service

Applications

  • Oil and gas production
  • Petrochemicals
  • Chemicals
  • Power plants
  • Pulp & Paper
  • Industrial gas
  • LNG


Specifications


Series
AM
Design
Unbalanced, top-guided / balanced, cage-guided
Size range
DN 25 - 1200 / 1" - 48"
Pressure classes
ASME 150 – 2500 / PN10 – 320
Temperature range
-196 °C … +593 °C
Tightness
ANSI/FCI 70-2 class IV / V (metal seat), V (soft seat, balanced), VI (soft seat, unbalanced)
